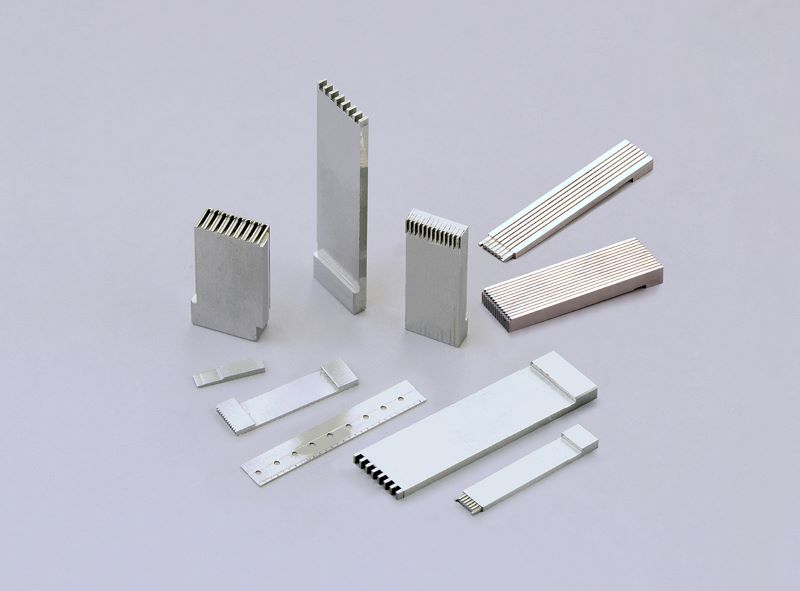

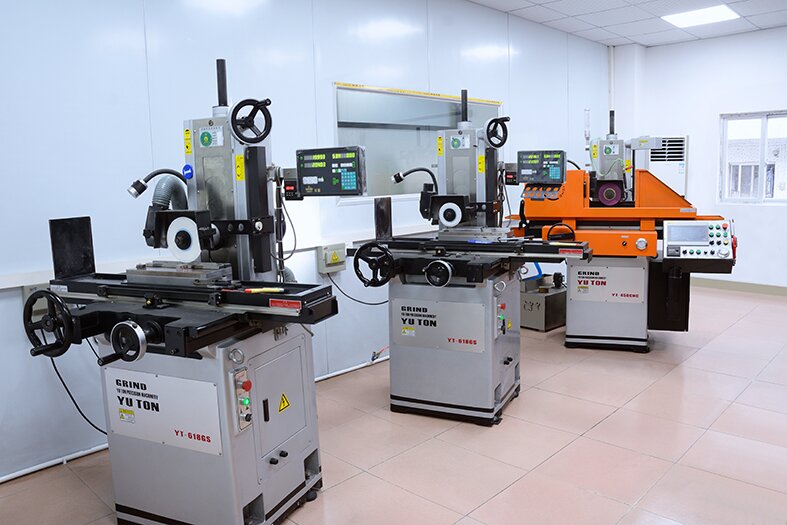

In precision mold manufacturing, grinding machine accuracy is crucial for final part quality. For XP MOLD's components, even minor deviations can cause dimensional errors, surface defects, and reduced mold performance.
Worktable linear motion errors affect machining geometry.Vertical errors cause diameter variations and generatrix straightness issues, particularly critical for XP MOLD's shaft and sleeve components where tight assembly clearances are required.
Process system abnormalities directly affect machining precision.Unreasonable technical schemes, grinding heat interference, or operational errors may lead to machining inaccuracies. Particularly for XP MOLD's thin-walled parts, residual stress-induced deformation significantly impacts critical dimension control.
The headstock spindle's rotation errors directly affect workpiece geometry.Radial runout causes roundness errors, while axial movement leads to dimensional deviations, impacting the assembly precision of XP MOLD components.
Multiple heat sources including grinding heat,friction heat, and environmental temperature variations cause uneven thermal expansion. This deformation challenges micron-level dimension control for XP MOLD parts, potentially causing consistent batch deviations.
As the core rotating component,the grinding wheel spindle's radial runout and axial movement must be controlled within 0.005mm. Inadequate precision causes surface defects like scratches or ripples, failing to meet XP MOLD's strict surface quality requirements.
Through comprehensive control of these key factors, XP MOLD ensures its precision components maintain excellent dimensional stability and surface quality, meeting demanding industrial requirements.
